  • INTIS - Wireless Charging Revolution

Fast-track your development
with INTIS

We offer stationary, semi dynamic or dynamic wireless charging for any electric vehicle and we are your ideal partner from design, prototype delivery and support of series production.

INTIS reference projects

  • E-taxis in urban environments
    Stacks Image 74

    First wireless charging taxi waiting lane on a public road in Cologne

    E-taxis in urban environments

    Waiting times become charging times

    Key features:

    • Charging power up to 22 kW
    • Positioning made easy by a positioning assistant which starts automatically
    • Coil system with an alignment tolerance of 60 cm in driving direction
    • Magnetic fields are well below ICNIRP reference values in public areas

    Advantages:

    • High charging power >> approx. 30 km in 15 minutes
    • Charging efficiency is more than 90 % at nominal power transfer
    • Robust roadside coils which can take mechanical loads from heavy duty trucks up to 40 t
    PRESS RELEASE CONTACT
  • Passenger cars

    Passenger cars

    Key features:

    • Charging power up to 22 kW
    • Charging efficiency is more than 90 %
    • Positioning assistant display for accurate parking

    Advantages:

    • Maintenance free
    • Robust in all weather conditions
    WATCH VIDEO CONTACT
    Stacks Image 441

    Stationary wireless charging system in Ottobrunn (at IABG), Germany

  • Autonomous shuttles

    Autonomous shuttles

    Key features:

    • Charging power up to 22 kW
    • Suitable for lithium ion or lead acid batteries
    • Integration of INTIS positioning information with shuttle control possible
    • Charging pad on-ground or in-ground configuration possible

    Advantages:

    • Reduced operational costs >> completely autonomous charging with no need for personnel
    • Reduced shuttle cost and weight >> smaller batteries possible with frequent opportunity charging
    • Increased longevity >> optimum charging pattern for the vehicles’ batteries
    WATCH VIDEO CONTACT
    Stacks Image 397

    Wireless charging for the Navya shuttle at IAA mobility 2021 in Munich

  • Automated Guided Vehicles (AGV)
    Stacks Image 419

    AGV with INTIS wireless charging system

    Automated Guided Vehicles (AGV)

    Key features:

    • Available for low battery voltage (up to 80 V) and high battery voltage (up to 800 V)
    • Vehicle charging current up to 800 A (80 V)
    • Horizontal or vertical charging pad configuration
    • Completely autonomous charging

    Advantages:

    • Higher availability >> fewer back-up vehicles required due to more frequent opportunity charging
    • Reduced life-cycle costs >> reduced maintenance with no wearing parts
    • Increased longevity >> operate your battery at optimum state of charge
    CONTACT
  • Micromobility – eBikes

    MICROMOBILITY – eBIKES

    Key features:

    • Charging power up to 200 W
    • Available for 36 V and 48 V vehicle batteries
    • Charging box mounted on a pole or on a wall

    Advantages:

    • The fin on the bicycle fork allows easy and comfortable charging without cables.
    • Through an intelligent algorithm the batteries lifetime will be improved
    FLYER CONTACT
    Stacks Image 79

    INTIS easyCharge pad mounted to an e-bike

  • Micromobility – eScooters
    Stacks Image 437

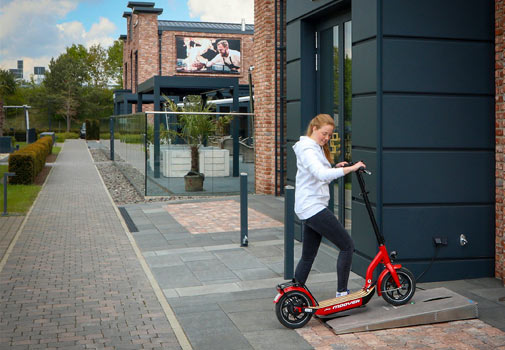

    Metz moover with INTIS easyCharge for hotels

    Micromobility – e-Scooters

    Key features:

    • Charging power up to 250 W
    • Available for 36 V and 48 V vehicle batteries
    • On-ground or in-ground integration possible
    • Suitable also for e-robots

    Advantages:

    • User-friendly automatic charging >> just park and go!
    • Battery-saving >> intelligent control system for charging process
    • App-compatible >> remote condition monitoring possible
    WATCH VIDEO BROCHURE CONTACT
Stacks Image 631

Coming Soon …

End of 2022 a testbed for intelligent mobility concepts focussing on connected and automated driving and wireless charging will be available in Bavaria. INTIS will use this new facility to carry out their testing of wireless charging of automated vehicles and automated valet parking with INTIS WPT.
